Anritsu’nun kapsamlı OTDR serisi, benzersiz bir el tipi, tezgah üstü ve OEM modül çözümleri yelpazesi ile fiber optik kabloların hızlı ve son derece hassas ölçümlerini sağlar. Fiber test uzmanları, denizaltı kablolarını test etmek için benzersiz Coherent OTDR’yi içerir.
| Select Order Select Order Model Number | Model Number | Wavelength | FEATURES |
|---|---|---|---|
| MT9085 Series OTDR – ACCESS Master | Opt-053: 1310/1550 nm SM Opt-055: 1310/1550/1650 nm SM Opt-056: 1310/1490/1650 nm SM Opt-057: 1310/1550/1625 nm SM Opt-058: 1310/1490/1550/1625 nm SM Opt-063: 1310/1550 nm SM, 850/1300 nm MM | OTDR function, light source, optical power meter, and visual light source built into all-in-one tester plus externally connected fiberscope (VIP) | |

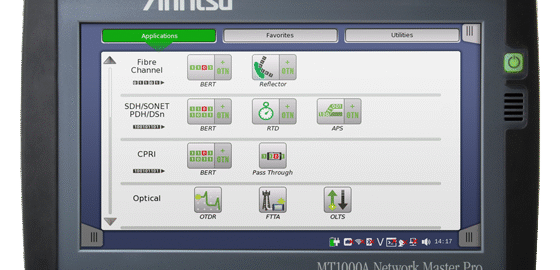

 | MT1000A Network Master Pro (Ethernet / FC / OTN / SDH / OTDR Test Equipment) | MU100020A: 1310 nm/1550 nm SM MU100021A: 1310 nm/1550 nm SM 850 nm/1300 nm MM MU100022A: 1310 nm/1550 nm/1625 nm SM MU100023A: 1310 nm/1550 nm/1650 nm SM | Supporting 10/100G, OTDR, and CPRI tests, portable tester with superior operability and expandability |
| MW90010B Coherent OTDR | 1,527.60 — 1,567.13nm SM | Coherent OTDR for detecting faults in very long submarine cables (up to 20,000 km) with high measurement resolution of 10 m | |
| MU909014C/14C6/15C/15C6 μOTDR Module™ Series | 1310/1550/1625/1650 nm SM | Compact and lightweight (700 gm approx.) OTDR for fiber Installation and maintenance | |
| MU909014B/14B1/15B/15B1 μOTDR Module™ Series | 1310 nm/1550 nm SM | Compact and lightweight (700 gm approx.) OTDR for fiber Installation and maintenance | |
| MU909014A1 μOTDR Module™ | 1625 nm/1650 nm SM | Compact and lightweight (700 gm approx.) OTDR for fiber Installation and maintenance |
